24V/36V 250W 15A Brushless DC Square Wave Controller Ebike Sensorless
24V/36V 250W 15A Brushless DC Square Wave Controller Ebike Sensorless
UK Stock Fast Delivery

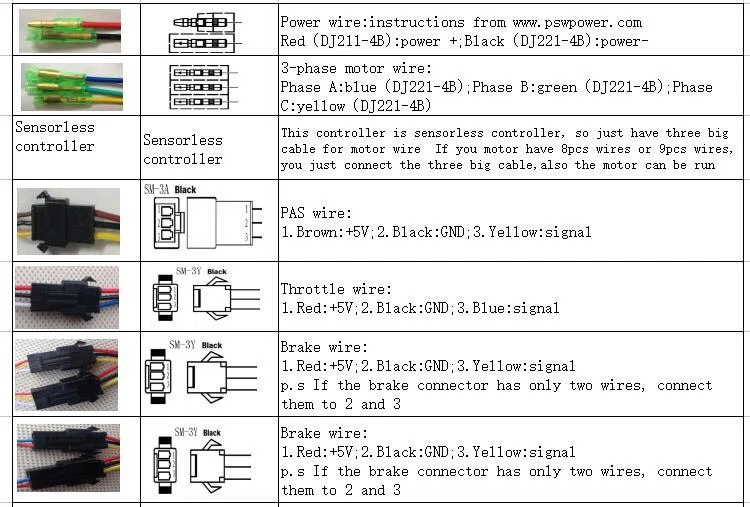

- This controller is sensorless controller(Without Hall Plug), so just have three big cable for motor wire If you motor have 8pcs wires or 9pcs wires, you just connect the three big cable.
Product details:
- 24V or 36V Universal (support both voltage)
- This controller can working without the PAS(Pulse Padel Assistant Sensor)
- Torque Simulation Square Wave Controlle (more stable, high efficiency, low current consumption, long life)
- Support hydraudic brake sensor or brake sensor connector
- Support LED Control Panel or LCD Control Panel
- Support 24V or 36V Light Control
- Support speed limit to 70%
- Support Cruise Function
- Support speaker and led right
- Support Regenerative Function (must use our LCD Display together to active this function)
Specifications:
- Input Voltage: DC 24V or 36V (Universal)
- Min. Voltage: DC20V/30±0.5V
- Max. Current: 15±1A
- Rated Curent: 7A
- Speed set: 1-4.2V
- Brake Input: Low-Level
- Size: 85x53x31mm
- Color: Silver
- Weight: 350g
- 6 pcs stronger MOSFET
- Applicatoin: Max. 36V /48V 250W
- Fit Bafang 8FUN 250W motor AKM 350W QQ 350W motor
Package Included
- 1 X 24V/36V 250W 15A Brushless DC Square Wave Controller
