Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

Ebike Brushless Motor Controller YF 48-72V 40A Sine Wave Dual Mode

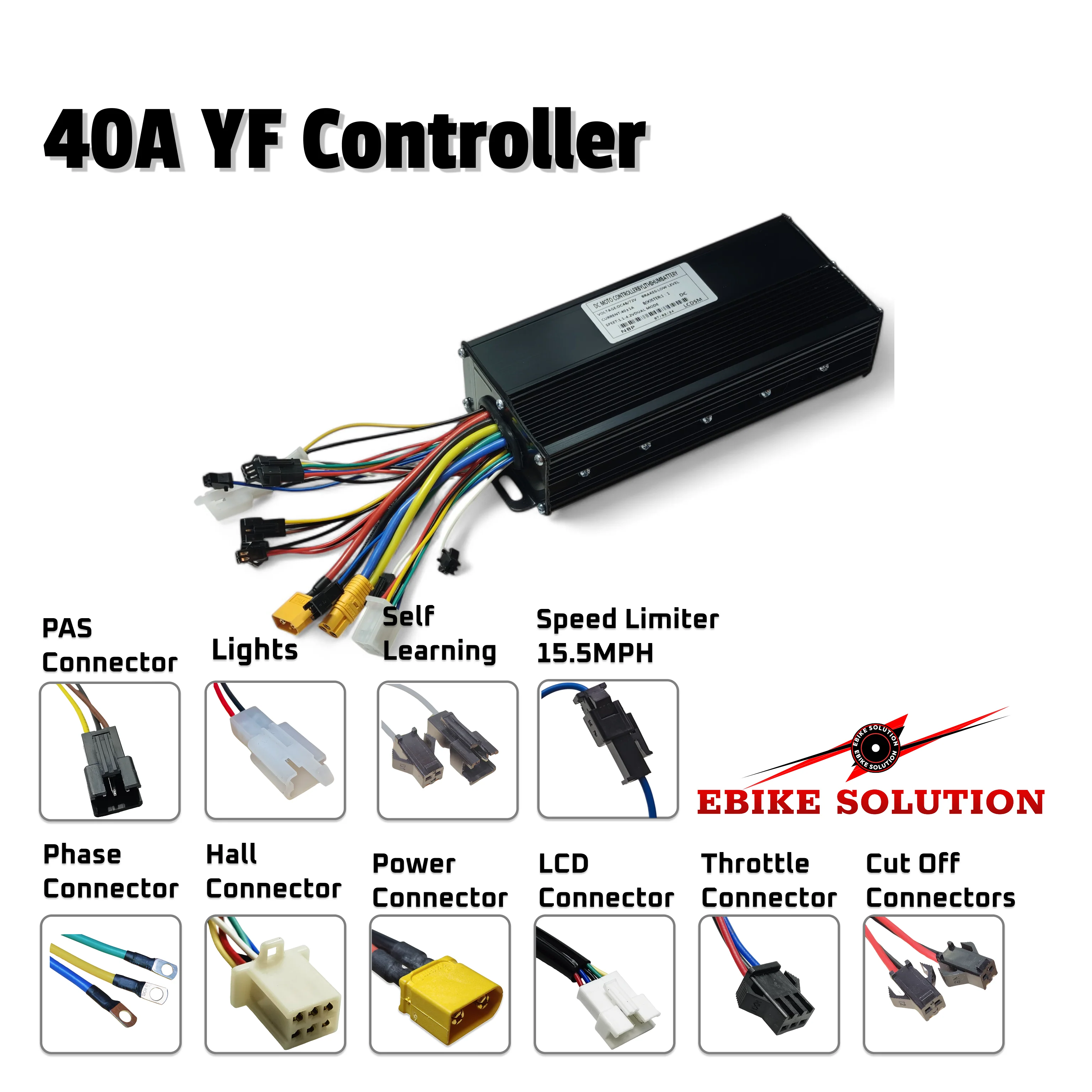

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors
• Smart Controller (can be used with any batteries)
  from 48v(13s) Less Speed
  up to 72V (20s) More Speed

Specifications:

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)
• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)

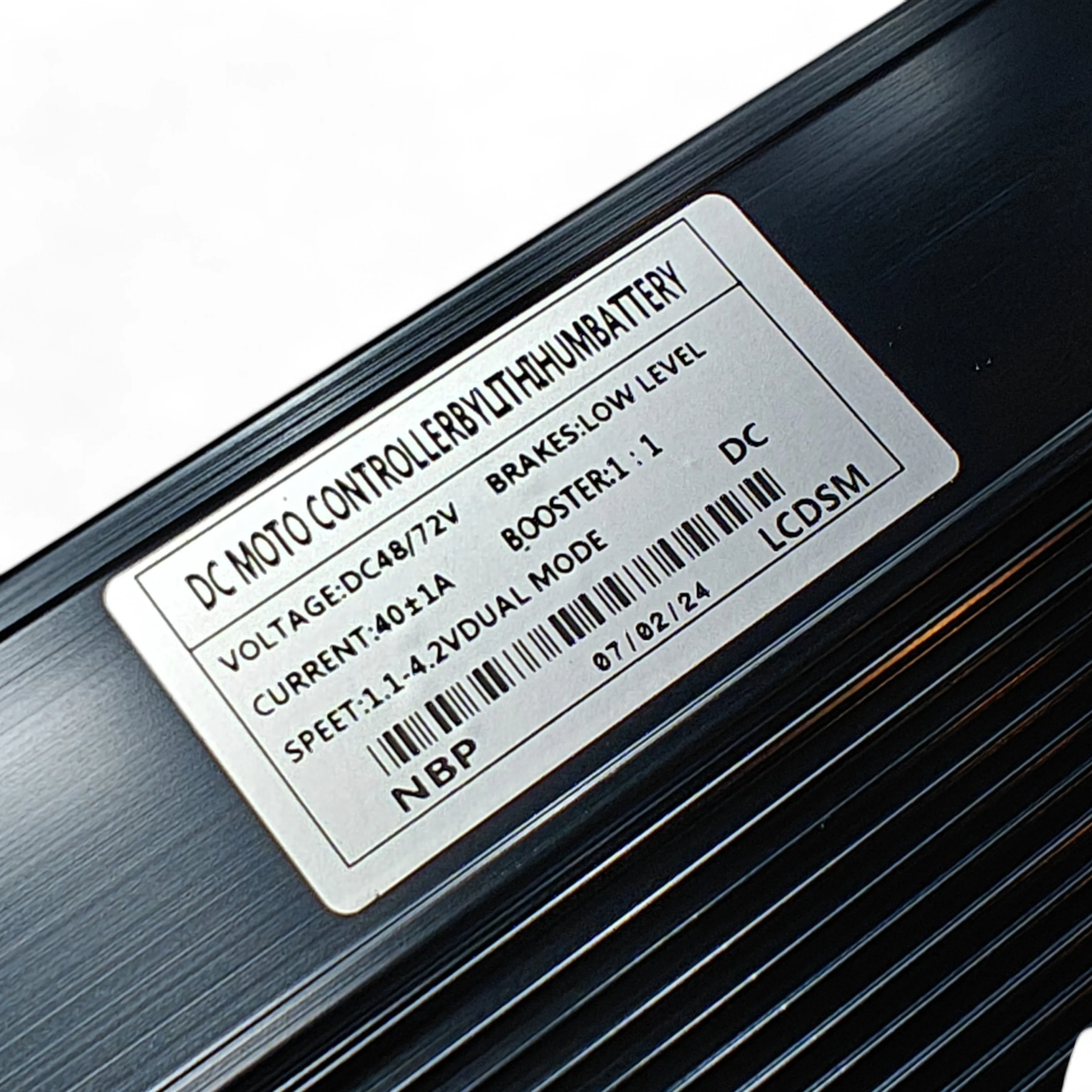

• Rated Voltage: DC 48-72V
• Power Output:
• 48V- 1900W
• 52V-2080W
• 60V-2400W
• 72V-2800W


• Motor Compatibility: 2000W
• Maximum Current: 40±1A
• Rated Current: 20A
• MOSFETs: 15 high-efficiency MOSFETs
• Size:18x9x5cm
• Weight:650g approx
• Cable Length: 13–18 cm
• Battery Plug:  XT60
• Motor Phase Plug: Rings or MT60

Package Include:

• 1 X YF 40A Sine Wave Controller
