KT Ebike Controller 36/48V 2000W 18-FET 45A Brushless Motor
KT Ebike Controller 36/48V 2000W 18-FET 45A Brushless Motor
UK Stock Fast Delivery
Can work only with KT Displays (won't work with SW900 Displays)

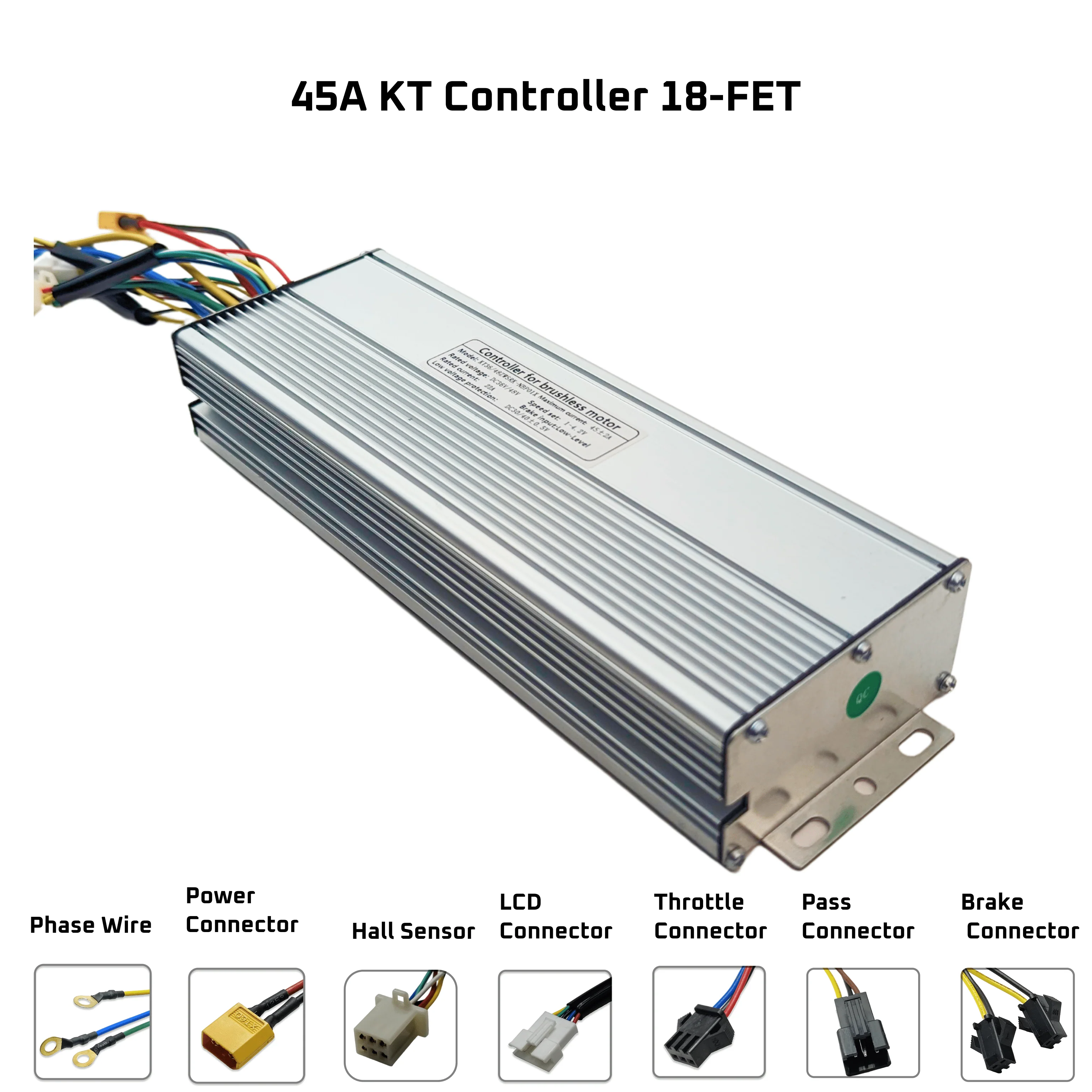

- This is sensored controller(with a hall plug), so the controller has three big cables and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor just three big cable,please buy sensorless controller
Product details:
- Provide accuracy torque output,give the enough torque for climbing
- High exchange efficiency, less temperature rise, give motor longer range
- More safe: Shaft lock protection, overcurrent protection,over-temperature protection ,over/under voltage protection,flywheel protection
- Make the motor longer life
- Easy to control the present situation, LED flash when any error
- A lot of additional function connection: e-brake,cruise,back off, etc
Specifications:
- Input Voltage: DC 48-52V
- Min. Voltage: DC30V/40±0.5V
- Max. Current: 45+2A
- Rated Current: 22A
- Speed set: 1-4.2V
- Brake Input: Low-Level

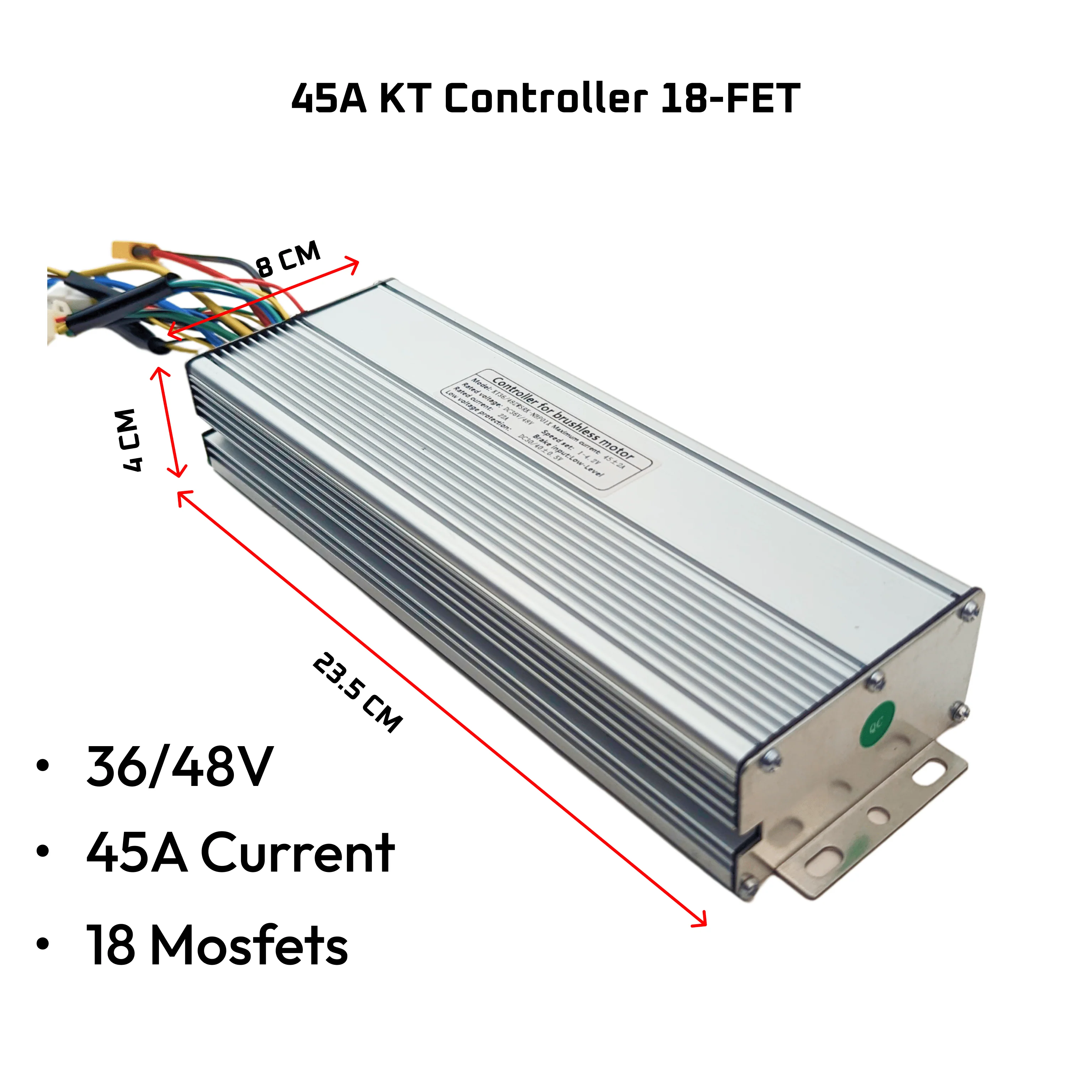

- Size: 240*82*41mm
- Colour: Silver
- Model: 18 mosfet
- Weight: 750g
Package Included
- 1 X 36/48V 2000W 18-FET 45A KT Ebike Controller Sensored
Shipping information: We offer free shipping on most of our items,dispatched same day Monday to Friday before 3PM.We can offer next day delivery on some of our items depending on availability and shipping address.
Guarantee: Offer a money-back guarantee or warranty to give the customer peace of mind when making a purchase.
Feedback:Your satisfaction and positive feedback is very important for us, if you have any problems, don't hesitate to contact us. We'll do our best to serve you.
